European modular cylinder | EXXO SMART out31-62/31-62ins (Black)
European modular cylinder | EXXO SMART out31-62/31-62ins (Black)
European modular cylinder | EXXO SMART out31-62/31-62ins (Black) - Image 2
European modular cylinder | EXXO SMART out31-62/31-62ins (Black) - Image 3
European modular cylinder | EXXO SMART out31-62/31-62ins (Black) - Image 4
European modular cylinder | EXXO SMART out31-62/31-62ins (Black) - Image 5

European modular cylinder | EXXO SMART out31-62/31-62ins (Black)

€69.00

Tax included
Free shipping
Trustpilot

Install Tedee PRO or Tedee GO(2) with a single product: a cam cylinder offering the widest length-adjustment range. Its modular design allows precise sizing on both the outside and inside of the lock, making it suitable for most cam-type Euro-profile door locks on the market.

How it works

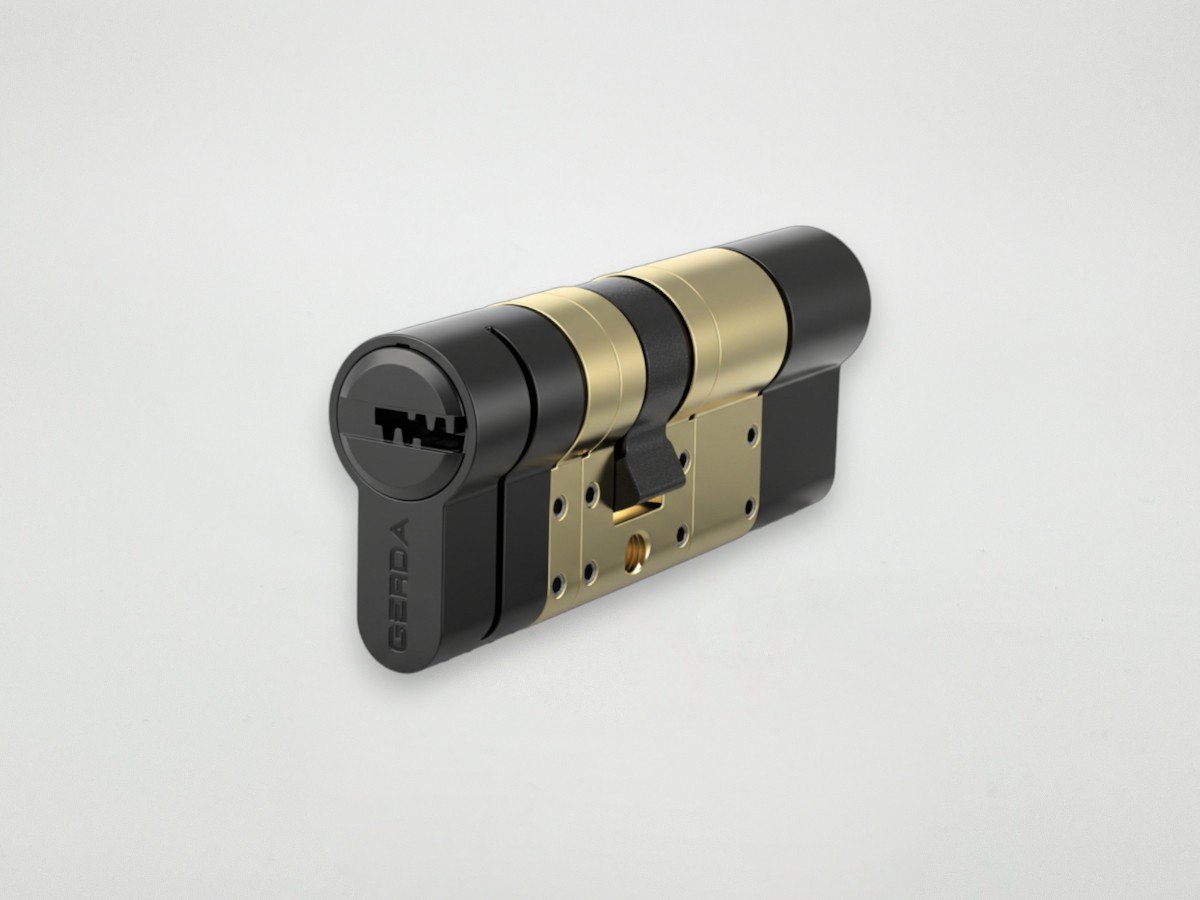

  • Outside (door exterior): unlock with a traditional key.

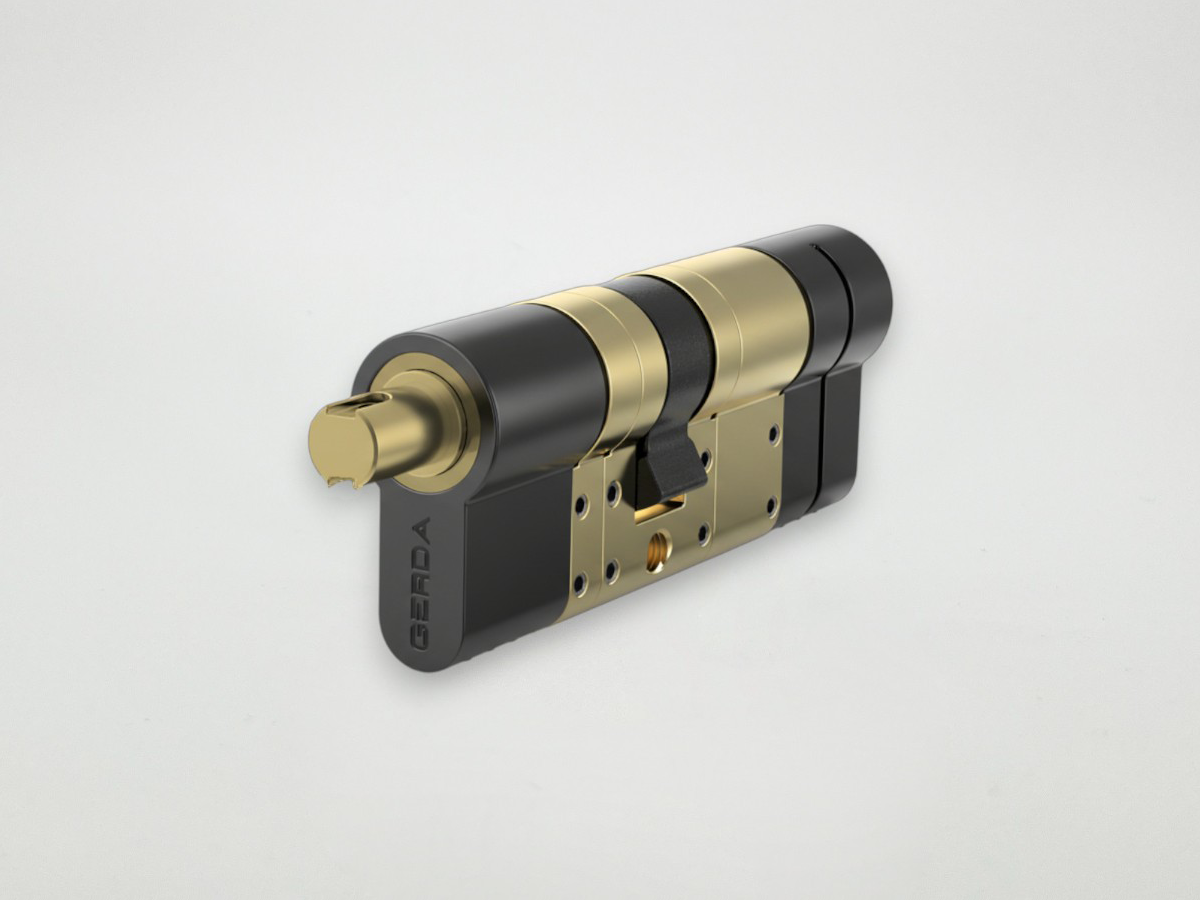

  • Inside (property side): a dedicated shaft enables quick, secure mounting of Tedee smart locks.
  • Compatibility: use on its own for Tedee PRO. For Tedee GO or Tedee GO(2), clip the included Bar adapter onto the double-slotted shaft.

Security & durability

  • EN 1303:2015: highest security Class 6.D.
  • Protections: anti-snap, anti-bump, anti-drill, anti-pick.
  • Two-row pin system with a snake-groove provides 200,000+ real key combinations.
  • Endurance tested: 100,000 lock/unlock cycles.
  • Extra keys available from GERDA or authorized locksmiths using the included key code card.

Access the Installation and Use Guide in your language here >>

Quantity
Specification Documentation
Type
Cam
Security
Class 6 according to EN 1303:2015
Compatible with
Tedee PRO / Tedee GO2 / Tedee GO
Available key side lengths
31 mm (no spacers) / 37 mm (1×6 mm) / 41 mm (1×10 mm) / 46 mm (1×15 mm) / 47 mm (1×6 mm + 1×10 mm) / 52 mm (1×6 mm + 1×15 mm) / 56 mm (1×10 mm + 1×15 mm) / 62 mm (1×6 mm + 1×10 mm + 1×15 mm)
Available smart lock side lengths
31 mm (no spacers) / 37 mm (1×6 mm) / 41 mm (1×10 mm) / 46 mm (1×15 mm) / 47 mm (1×6 mm + 1×10 mm) / 52 mm (1×6 mm + 1×15 mm) / 56 mm (1×10 mm + 1×15 mm) / 62 mm (1×6 mm + 1×10 mm + 1×15 mm)

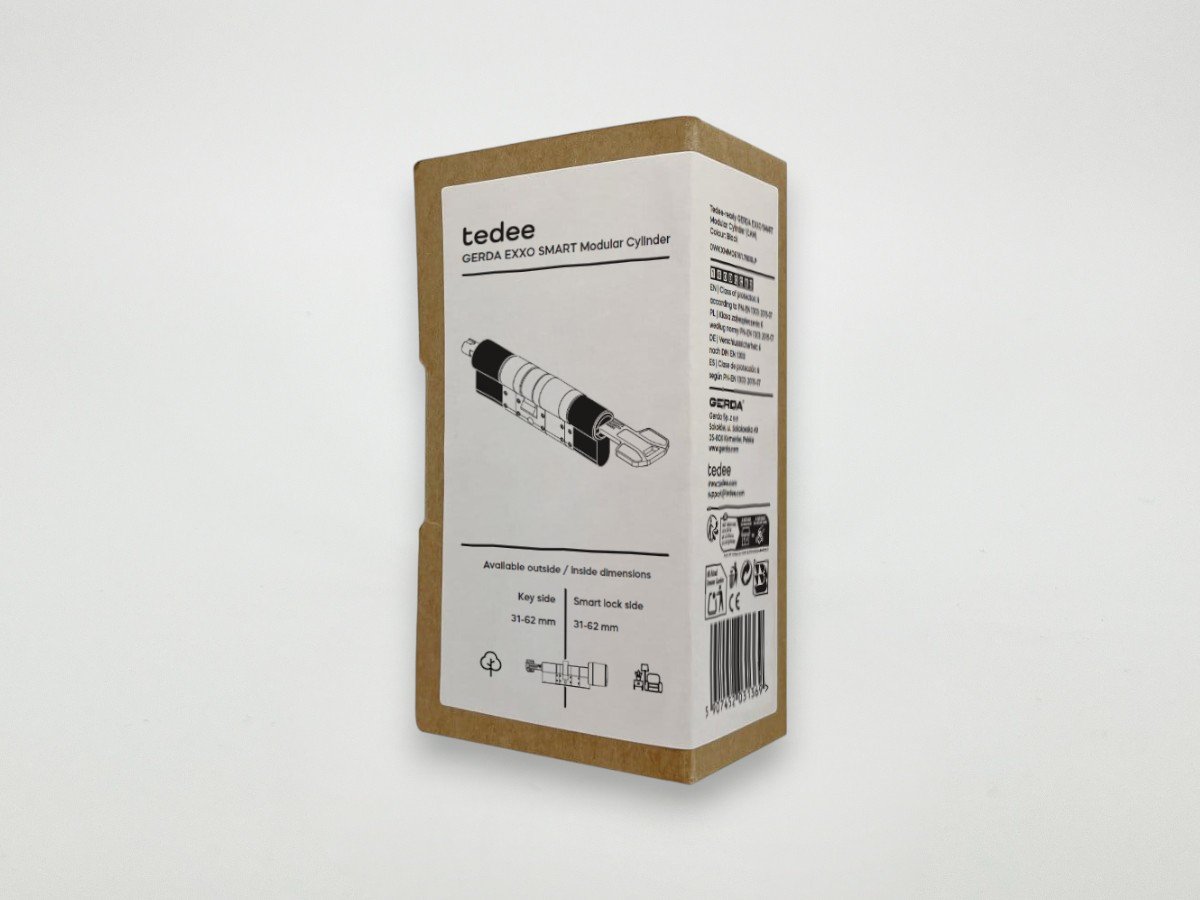

Box contents
Cylinder (default configuration out37/41ins includes 6 and 10 mm modules) / 4× spacers: 6 mm, 10 mm, 15 mm, 15 mm (with spacer spools and clamping screws) / Tedee GO(2) Bar adapter / Mounting screw / 5 keys / Key code card / Allen key / Documentation
Box measurements
70 x 131 x 47mm
Installation and Use Manual [EN, PL, DE, ES] DOWNLOAD
