Tedee Flush Wall Mount for Keypad PRO (White/Black)

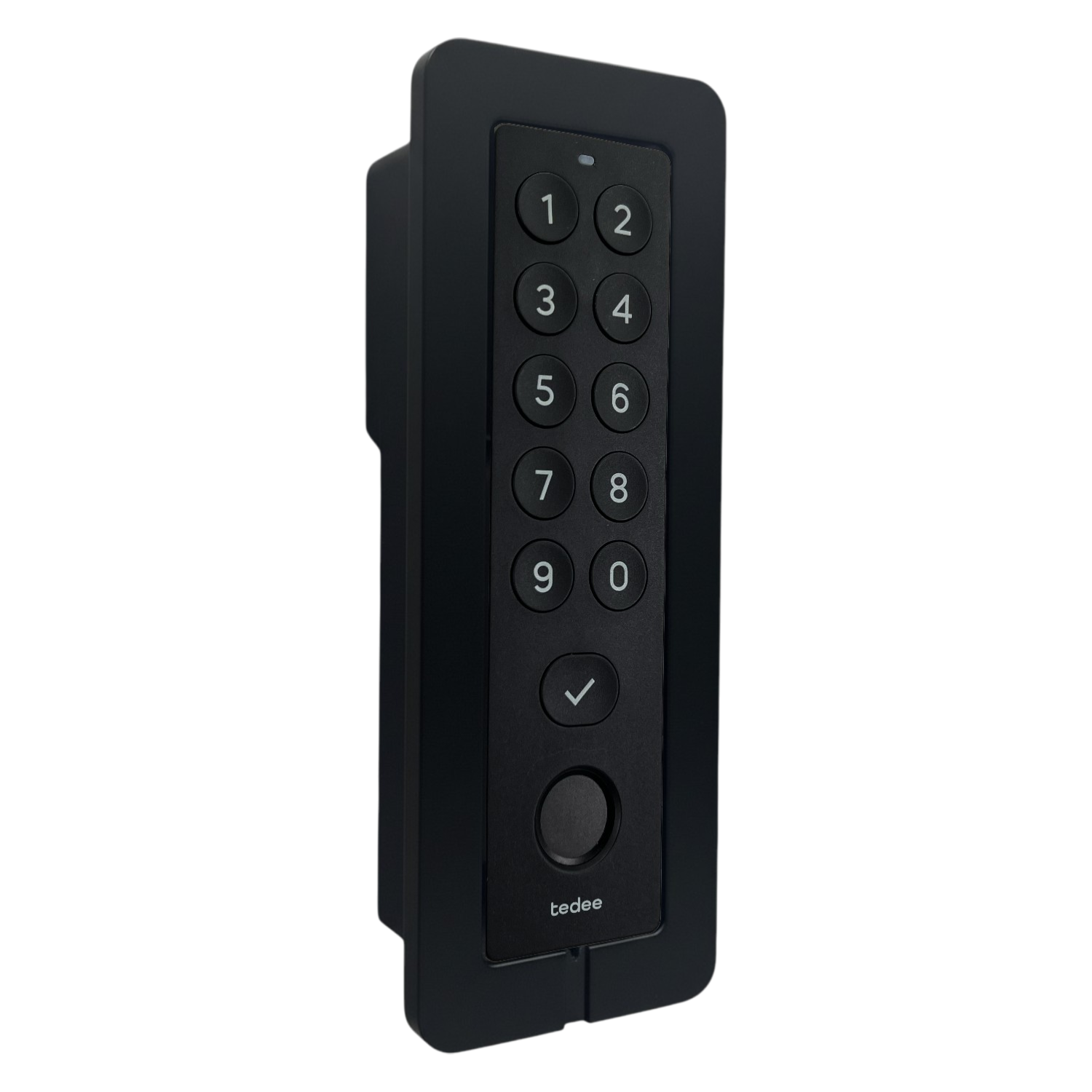

Tedee Flush Wall Mount — built into your wall, built into your design

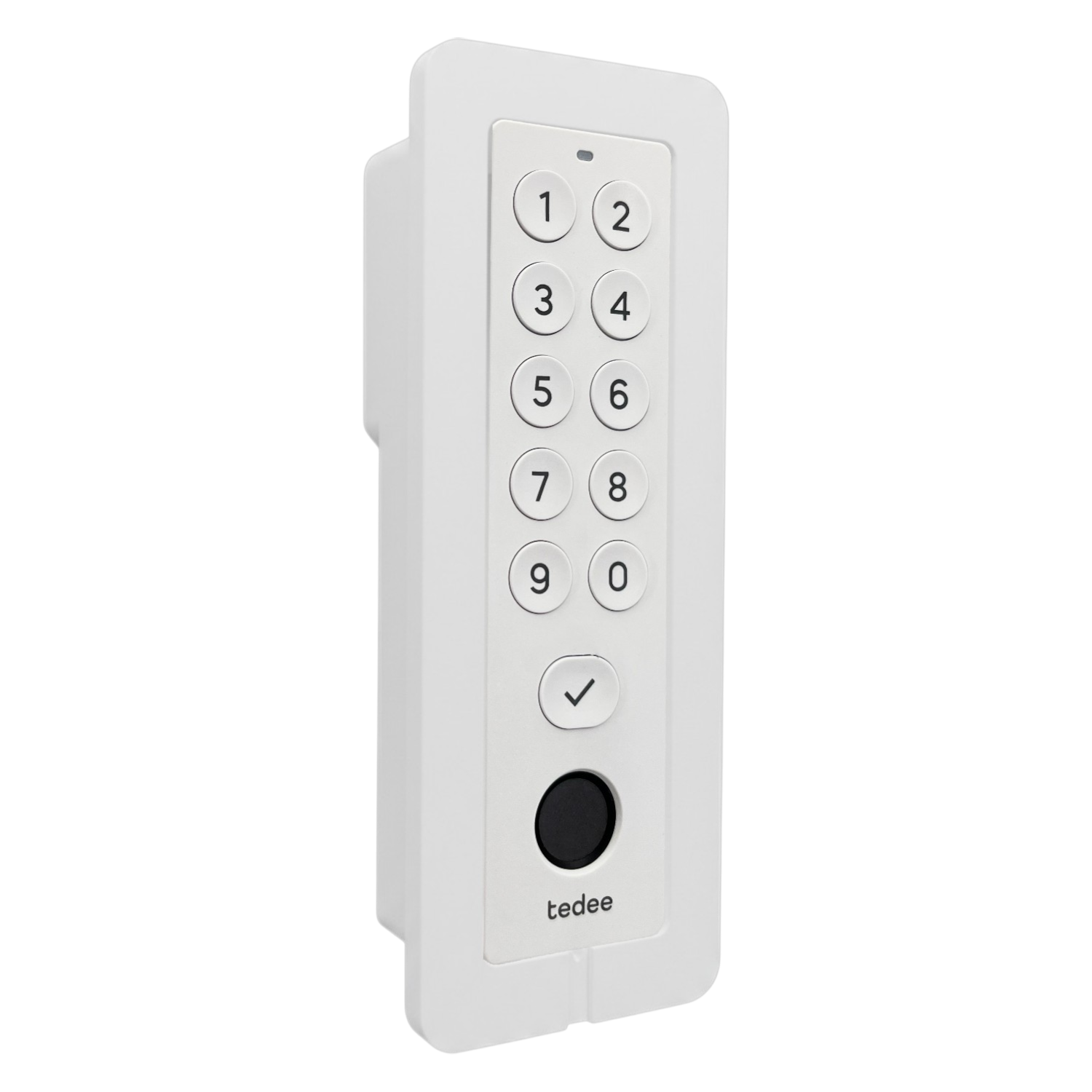

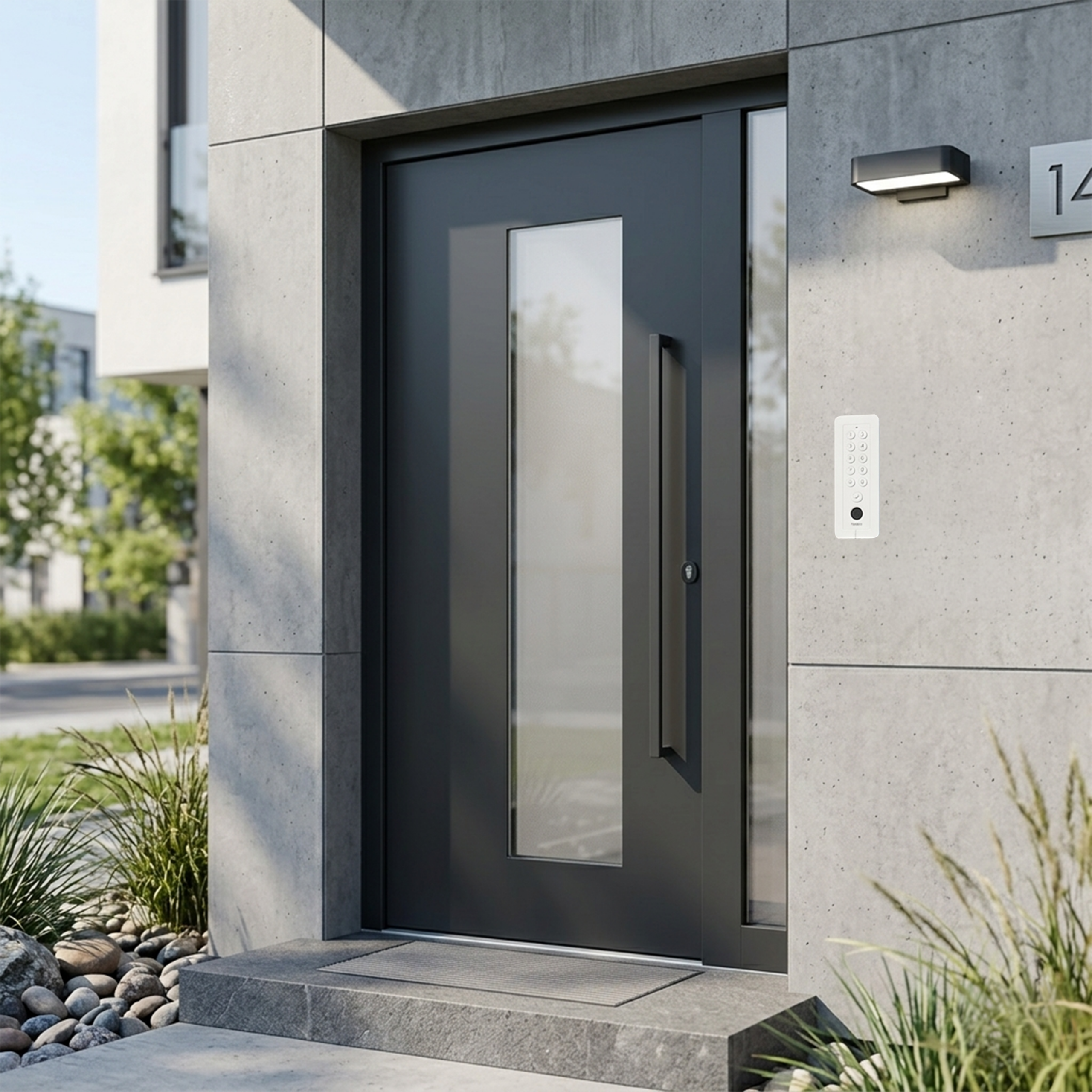

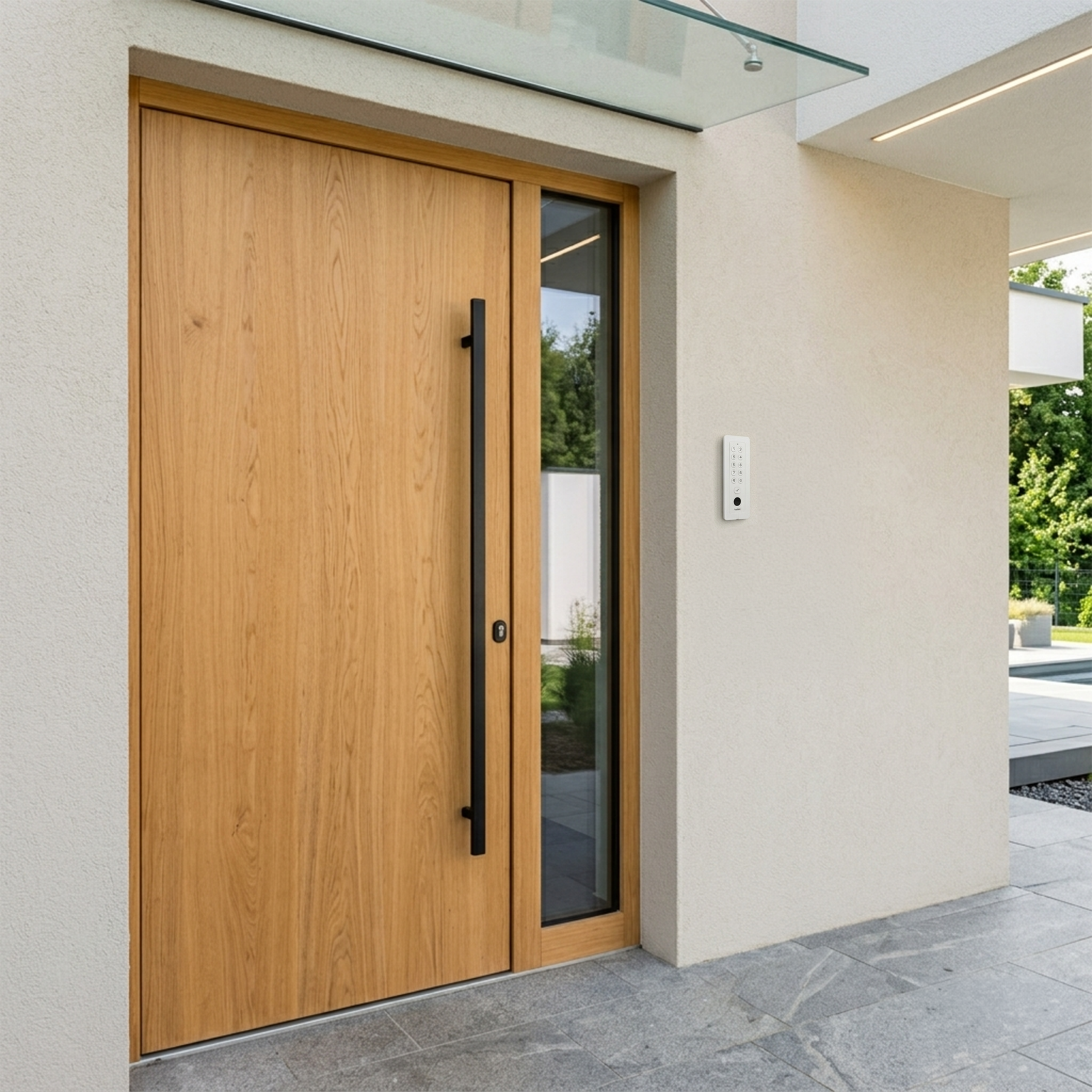

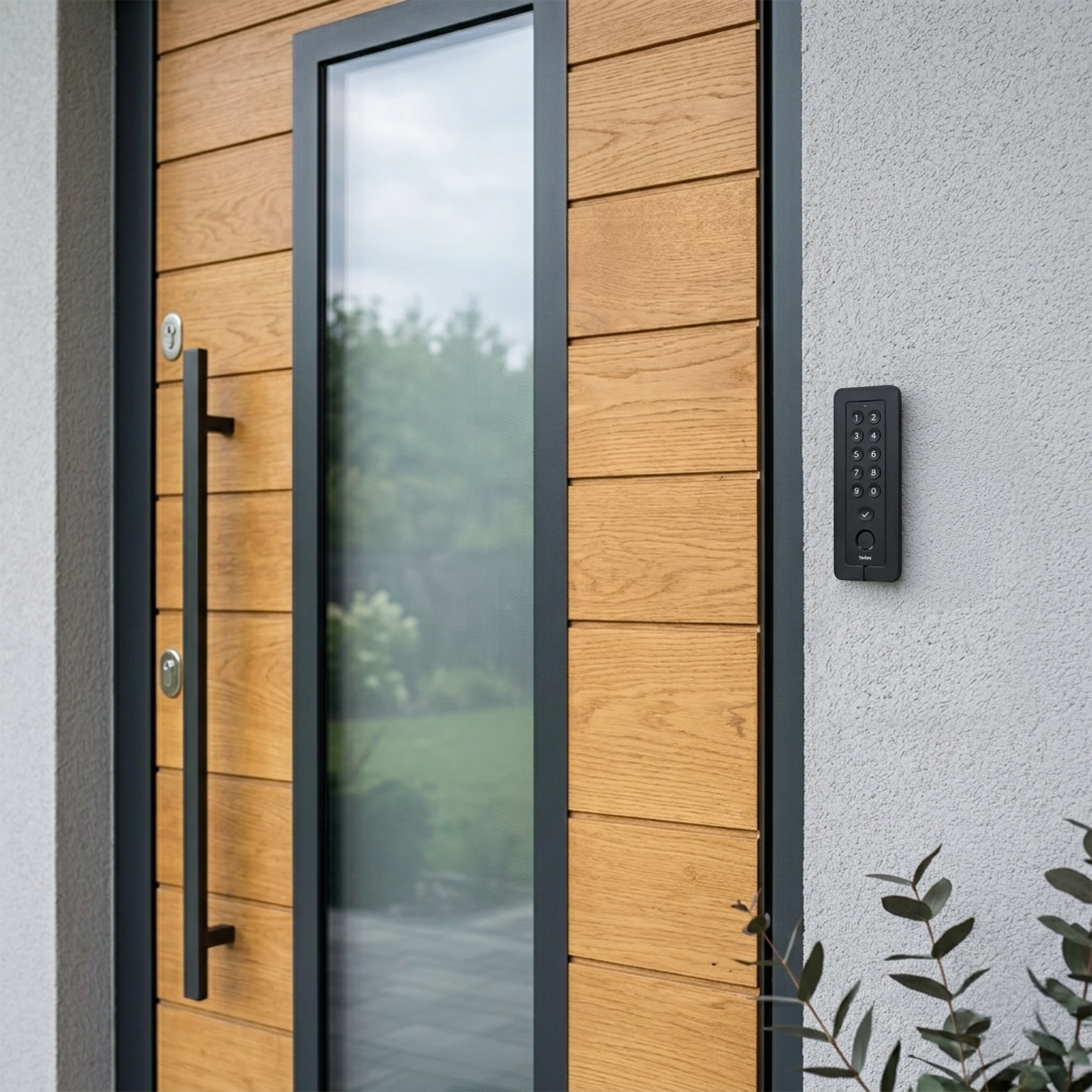

The Tedee Flush Wall Mount is a professional recessed bracket designed exclusively for the Tedee Keypad PRO. It transforms the standard surface-mounted keypad into a flush, in-wall installation — with cabling hidden inside the structure and the device sitting precisely on the line of your wall finish. The result is a clean, architectural detail that integrates smart access into the building rather than adding to it.

This solution is intended for new installations, renovations, and premium developments where the wall recess and wiring can be planned in advance. It’s the natural choice for architects, interior designers, developers, and property owners who refuse to compromise on the aesthetics of their entryway.

Wired power, hidden inside the wall

The Flush Wall Mount supports wired power input of 5–24 V DC, 0.5 A, routed entirely through the wall to a discreet outlet inside the recessed box. No external cable channels. No surface trunking. No visible wires next to the keypad. Continuous wired power also means significantly reduced battery maintenance — ideal for high-traffic locations, short-term rentals, and commercial properties.

For uninterrupted operation, Tedee recommends keeping AAA batteries inside the device as backup. The Keypad PRO prioritizes wired power and only falls back to batteries during outages, ensuring your access stays operational even during a blackout.

Two installation methods

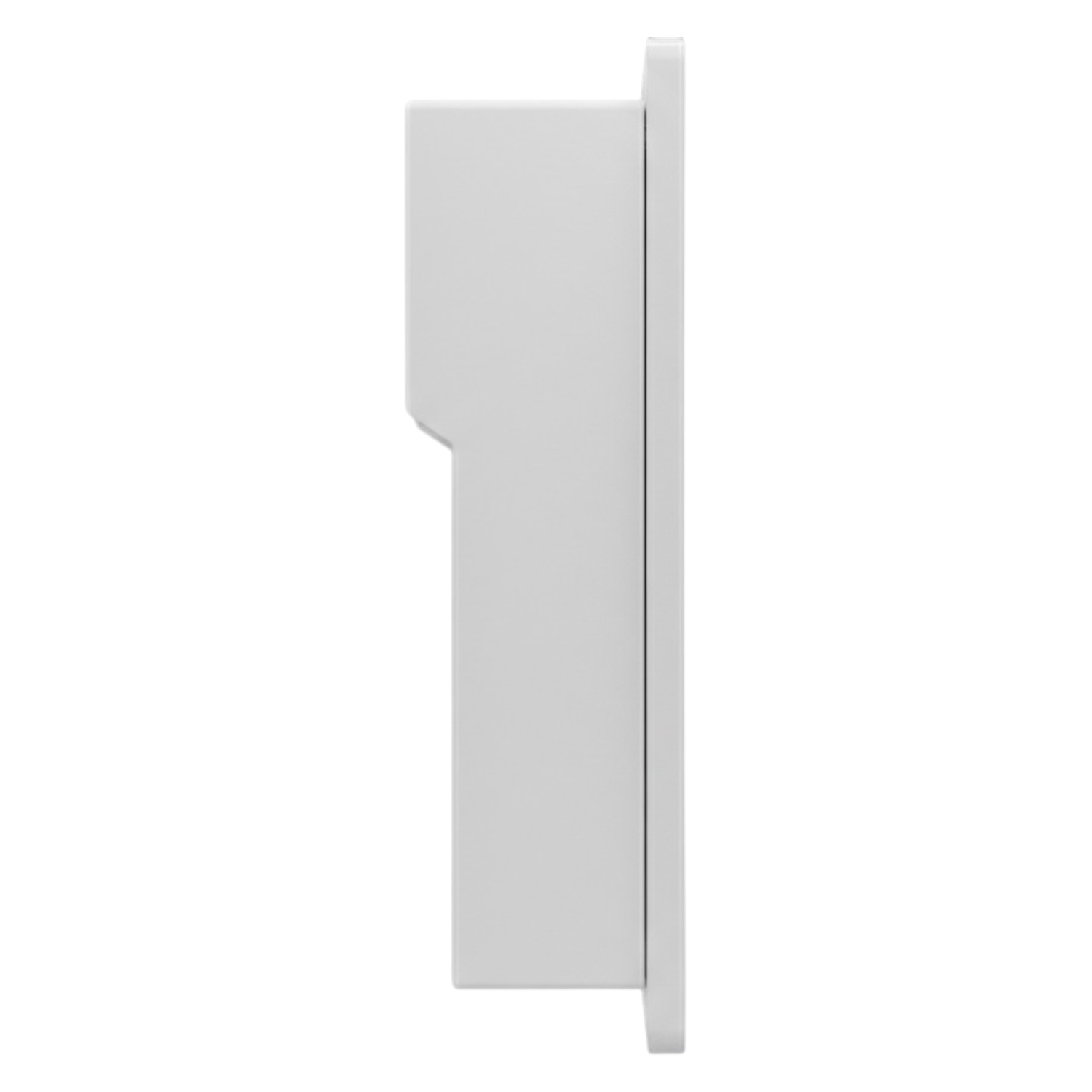

• Plate installation — the aluminum frame overlaps the wall surface, covering the edge of the recess. Easier to prepare and suitable for most projects.

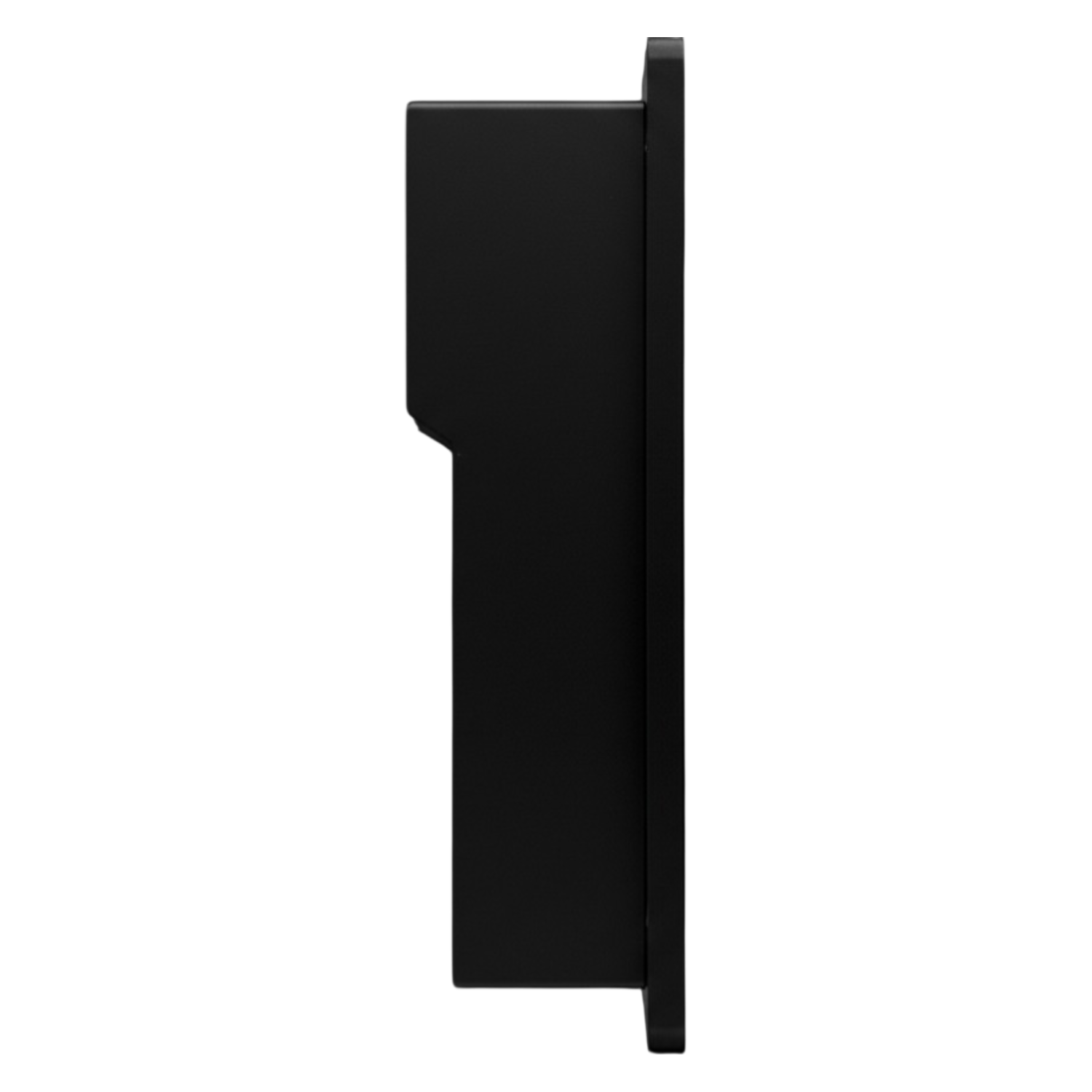

• Deep installation in wall panels — the entire box is recessed and the aluminum frame sits perfectly flush with the surface. Requires a more advanced two-level recess and precise preparation, but delivers an uncompromised visual result.

Magnetic mounting with dedicated removal tool

The Keypad PRO attaches to the recessed box via a magnetic mounting plate that replaces the standard one. Removing the device requires the dedicated tool included in the kit, which hooks into a slot on the bottom edge of the keypad. Combined with the recessed wall structure, this makes unauthorized removal significantly harder than with a standard surface installation.

Full Keypad PRO functionality preserved

Fingerprint scanner, PIN entry, NFC reader (pending firmware activation), and Bluetooth communication with your Tedee PRO or Tedee GO2 smart lock all work exactly as in the standard installation. Better aesthetics, same powerful access control.

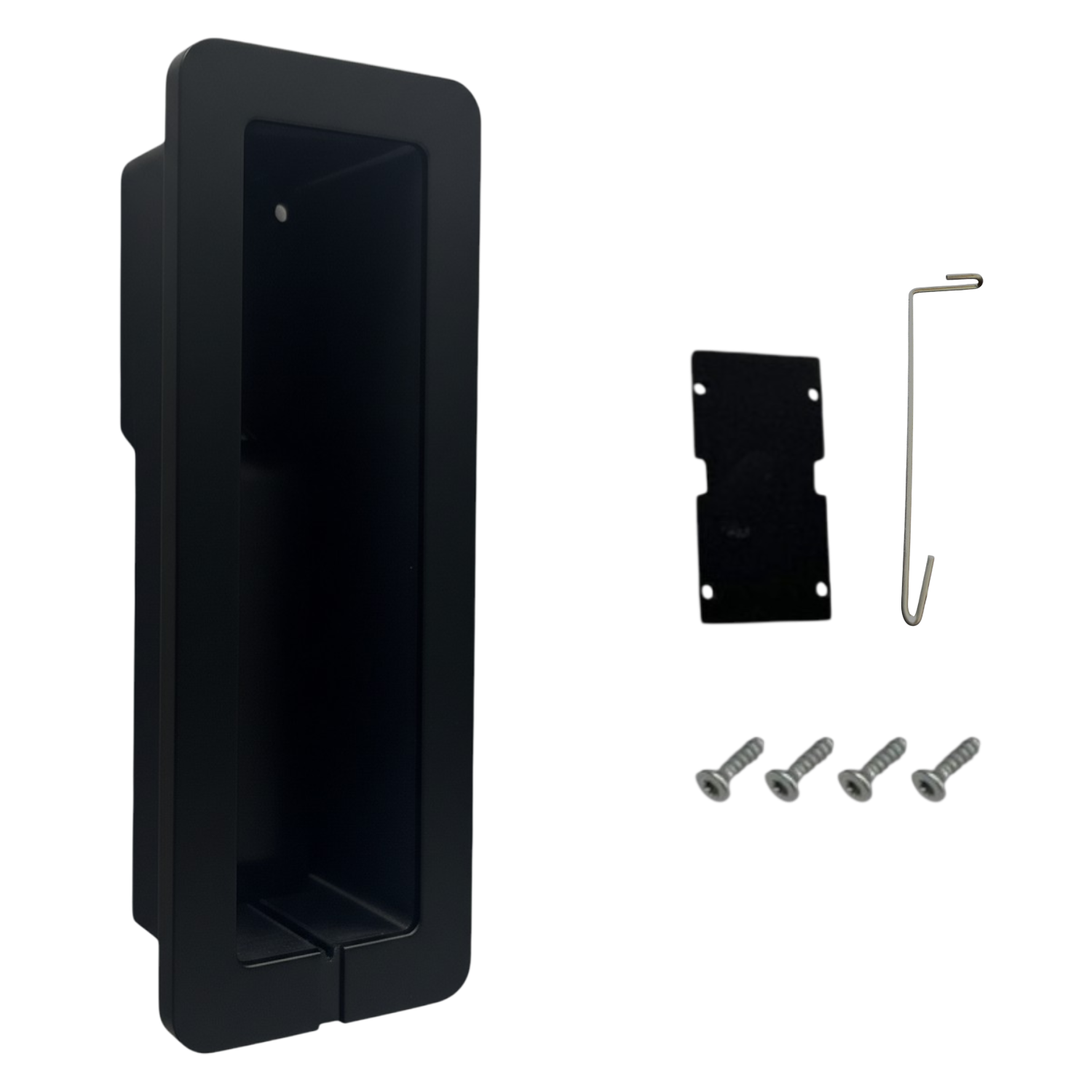

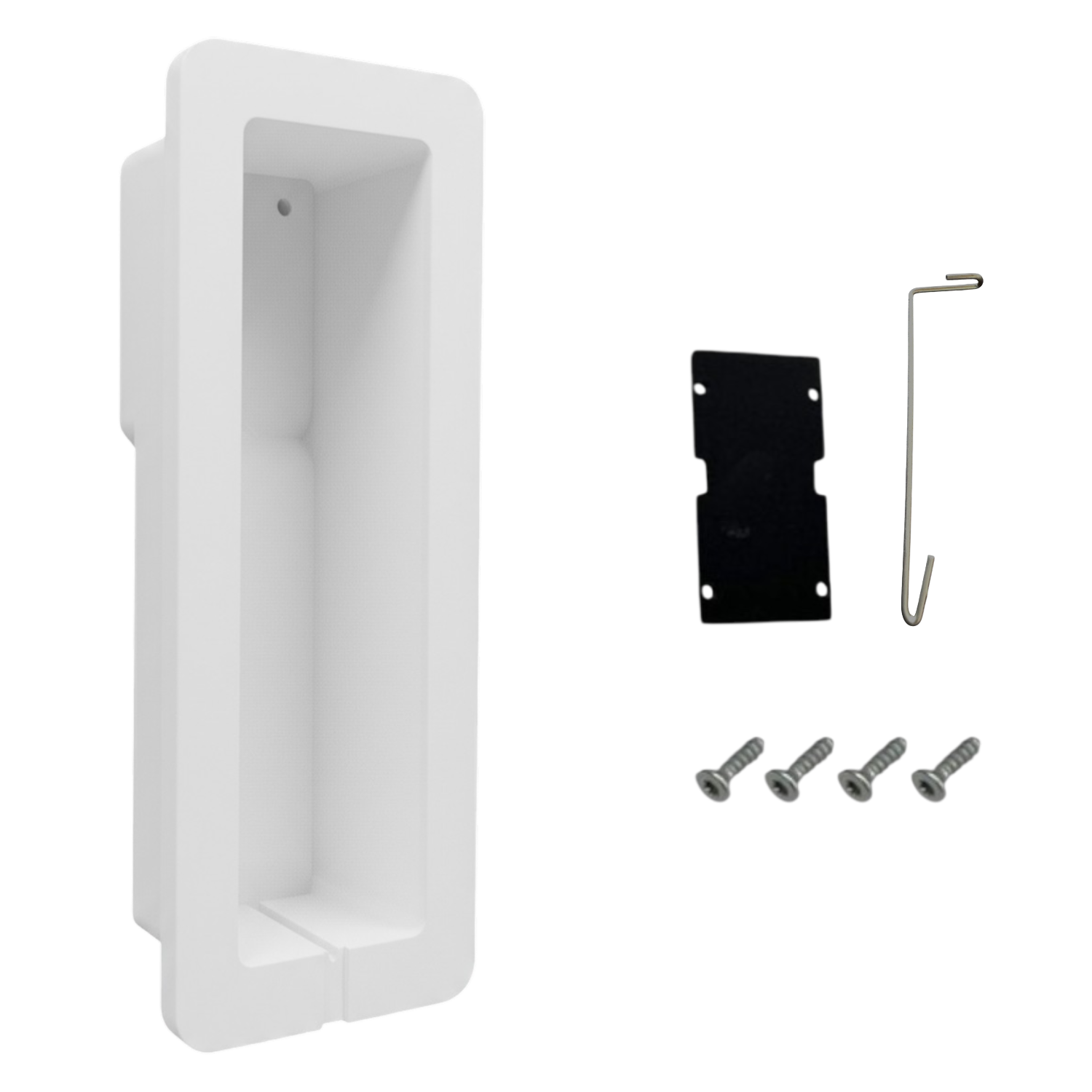

What’s in the box

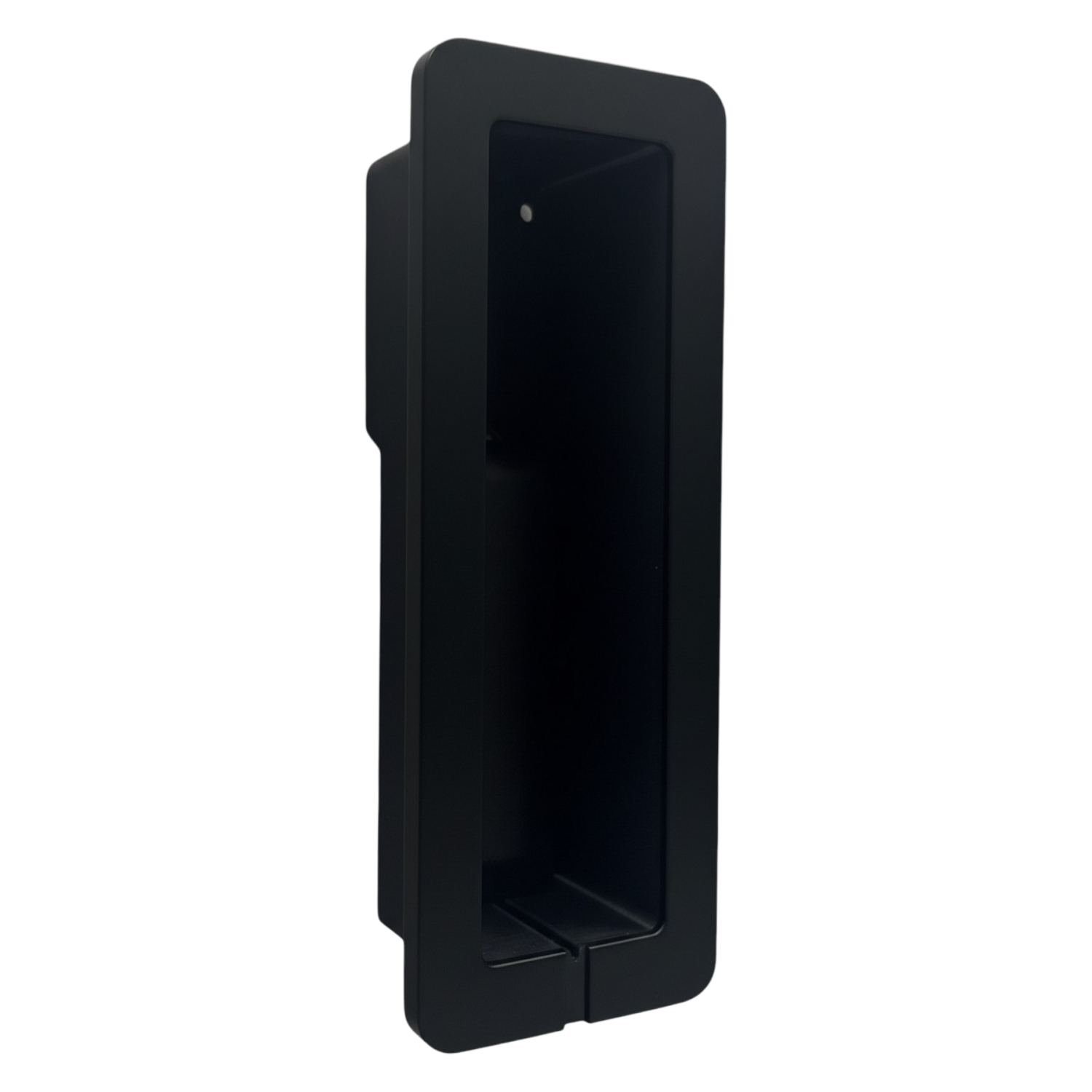

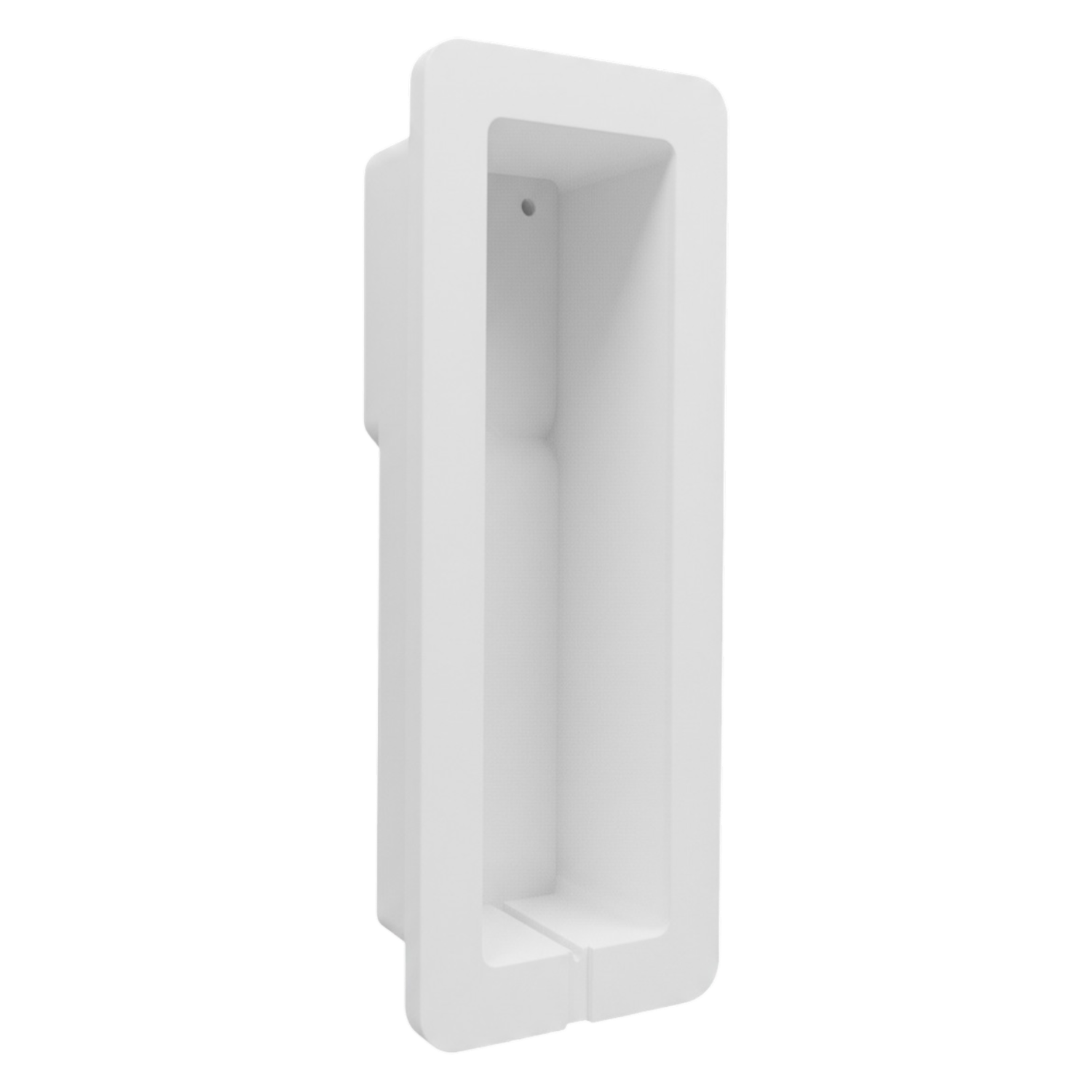

• Recessed mounting box
• Magnetic mounting plate
• 4 × mounting screws
• Dedicated keypad removal tool
